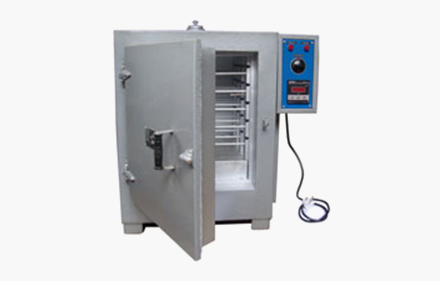

A Submerged Arc Welding Flux Drying Oven is a specialized industrial oven used for drying and storing welding flux used in the Submerged Arc Welding (SAW) process.
The oven is designed to remove any moisture that may have accumulated on the welding flux, which can negatively affect the quality of the welds.
| Technical specifications | HIEC 400 F, 200KG |
|---|---|
| Working Space(mm) | 1066x780x800(HWD) |
| Capacity(approx) | 200KG.(440 ibs.) OF flux |
| Numbe of trays | 8+8(16 Nos in 2 Rows) |
| Tray dimension(mm) | 75x350x780(HWD) |
| Temperature Range | Ambient-400 c (7520 F) |
| Input Power | 18 kw |
| Input current | 25.8 amp.per phase |
| Input Supply | 415 v, three phase ac , 50 hz |
| Air Circulation | Forced air |
| Type of Control | Digital Controller(accuracy of +-1% FSD) with thermocouple sensor |
| Drive | Indirect drive, electric motor,1hp |
