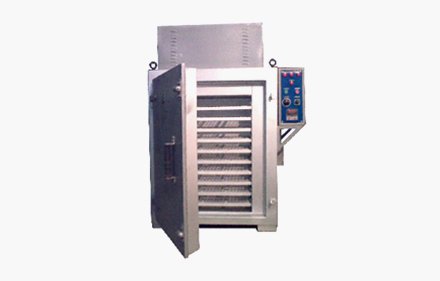

Stationary Welding Electrode Drying Oven is designed to remove any moisture that may have accumulated on the electrodes, which can negatively affect the quality of the welds
| Technical specifications | HIEC 400 e, 100kg |
|---|---|
| Working space (mm) | 1000x650x500 (hwd) |
| Capacity (approx) | 100 kg.(220lbs.) of welding electrodes |
| Number of trays | Ten |
| Temperature range | Ambient -4000 c (7520 f) |
| Input power | 12 kw |
| Input current | 17.2 amp. per phase |
| Input supply | 415 v, three phase ac, 50 hz |
| Power saving | Through 3-heat switch |
| Air circulation | Forced air |
| Type of control | Digital controller (accuracy of +1% FSD) with thermocouple sensor |
| Drive | Indirect drive, electric motor, 1 hp |
| Weight (approx) | 525 kg. |
