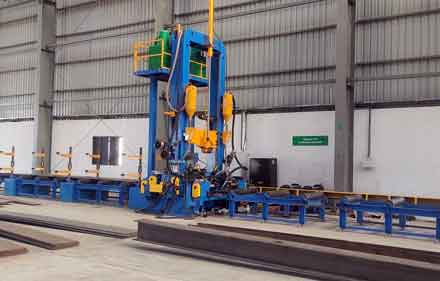

I - Beam Fit up and Welding Machine is designed to streamline the manufacturing process by automating the process of aligning and welding the H-shaped steel beams.
The machine uses advanced computer controls and robotics to precisely align the steel beams, ensuring they are straight and true. It also uses welding technology to fuse the beams securely.
| Web plate height | 200-2500 mm |
|---|---|
| Web plate thickness | 6-63 mm |
| Web plate length | 4000-15000 mm |
| Flange plate width | 200-1000 mm |
| Flange thickness | 6-80 mm |
| Flange plate length | 4000-15000 mm |
| Assembling speed | 500-6000 mm/min |
| Input roller length | 12500 mm |
| Output roller length | 12500 mm |
| General power | 10 KW (35 KW) |
