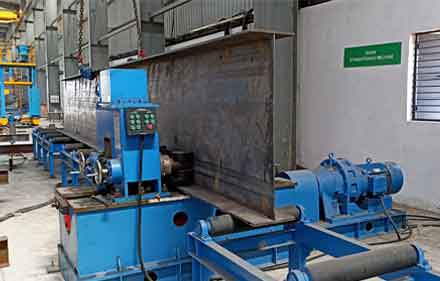

An Beam Straighting Machine is a specialised industrial machine that is used to straighten the flanges of H-shaped steel beams.
The flanges of these beams can become distorted during the manufacturing process or due to other factors, such as transportation or handling.
The Beam Straighting Machine is designed to correct these distortions by applying controlled pressure to the flanges and bending them back into their correct shape.
| Model | Model |
|---|---|
| Flange width | 400-1200 mm |
| Flange thickness | 8-80 mm |
| Web height | 350-3000 mm |
| Web thickness | 8-63 mm |
| Main press wheel pressure | 2000 KN |
| Max transfer torque | 50 KN.M |
| Straightening speed | 5.2m/min |
| Hydraulic system pressure | 18/25 Mpa |
| Power of hydraulic pressure | 22KW |
| Machine tool total power | 27KW |
